ONLY FOR EXTRA CEE MARKET

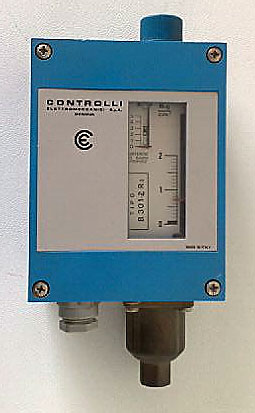

ADJUSTABLE DIFFERENTIAL PRESSURE SWITCH MOD.B301 2 R3.
Pressure regulator for fluid with temperature from -5 to +50°C.
Scale +1000/+20000 mm/H2O, adjustable by means of knob and visible reference index on a graduated scale.
Differential field (or proportional band) from 500 to 3000 mm/H2O, adjustable by a screw, with visible reference index on graduated scale.
Normally used as minimum and maximum pressure switch. The fluid requiring pressure control must not be aggressive. Electric supply 230V single-phase 50Hz.
Overall dimensions 100 x 70 x 230 mm.
Net weight 1,5 Kg.
